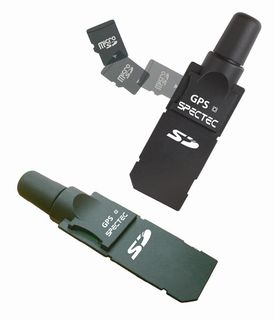

Spectec Launches SDG-812 SD Bluetooth GPS Receiver 2007/08/03

Brief Introduction:


2 in 1 GPS+Micro SD Memory Slot

Using SiRF Star III low signal levels and high sensitivity acquisition.

Key Features:

  1. SiRF Star-III high performance and low power chipset
  2. Communication with host platform via Bluetooth Serial Profile
  3. Geohelix GPS Antenna
  4. Support NMEA0183 data protocol
  5. LED show the status of GPS
  6. Auto power-off, if Bluetooth is not connected to any devices within 8 minutes
  7. Bluetooth operation range: 6~10 m

Antenna:

  1. Type: Geohelix GPS antenna
  2. Chipset: SiRF GSC3f/LP
  3. Frequency: L1, 1575.42 +/- 1.023MHz
  4. Channels: 12, up to 20
  5. Datum: WGS-84
  6. GPS output data: NMEA 0183 protocol and supports command: GGA, GSA, GSV, RMC
  7. GPS transfer rate: 9600,N,8,1
  8. Humidity: Up to 95% non-condensing
  9. Dimension: 55*24*2.1mm (no antenna)
  10. Weight: 15g

Bluetooth:

  1. Bluetooth V2.0 compliant
  2. Supply Voltage: 2.8V ~ 3.7V
  3. Frequency Range: 2.402 ~ 2.480 GHz
  4. Receiver Sensitivity: -78 dbm
  5. Transmit Power: Class 2
  6. Transmitting Range: 6 ~ 10 m
  7. Power Consumption: 45 mA (Typical)
